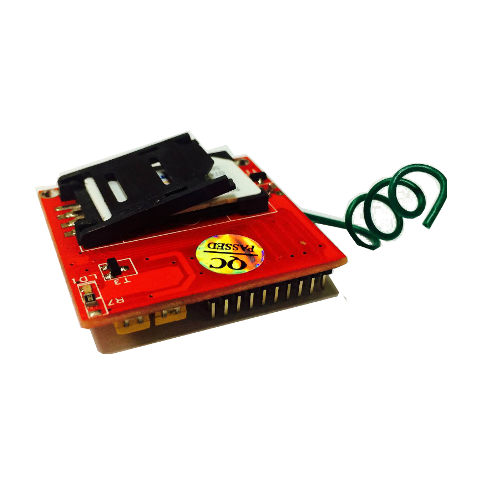

  • SHAULA-701 is a GSM/GPRS Modem
  • Quad-Band 850 / 900/ 1800 / 1900 MHz – would work on GSM networks in all countries across the world.
  • Embedded TCP/UDP stack
  • Connects to SHAULA-V9 and other Boards to add GSM Interface
  • measuring about 1.35×1.5 inches



Category:

Description

Features
  • SHAULA-701 is a GSM/GPRS Modem
  • Quad-Band 850 / 900/ 1800 / 1900 MHz – would work on GSM networks in all countries across the world.
  • Embedded TCP/UDP stack
  • Connects to SHAULA-V9 and other Boards to add GSM Interface
  • measuring about 1.35×1.5 inches
Tech. Specifiactions

TechnologyQuad-Band GSM/GPRS
Band850/ 900/ 1800/ 1900 MHz
GPRS Class class 10: max. 85.6 kbps (downlink)
USSDyes
DTMFyes
Network Indication LED OFF SHUALA-701 is OFF
Network Indication LED 64ms On/800ms Off:SHUALA-701 is not registered to the network
Network Indication LED 64ms On/3000ms Off:SHUALA-701 registered to the Network
Network Indication LED 64ms On/300ms: SHUALA-701 is in GPRS communication
SIM holder 6 Pin Holder for SIM Cards
SIM VoltageBoth 1.8 volts and 3.0 volts SIM Cards are supported
Normal Temp:-40°C to +85 °C
Dimensions1.35×1.5 inches
