| Model Code | IPC-HDBW5200 |
|---|---|
| Chip Inch Size | 1/3 |
| Colour Type | Colour / Monochrome |
| Resolution | 2 MP |
| Digital (DSP) | Yes |
| Specialist Type | Network |
| Auto Iris | Yes |
| Electrical Specifications | Voltage: 24 V AC |
| Focal Length mm | 2.7 ~ 12 mm |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1920 x 1080 |
| Network Properties | Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/3 ~ 1/10000s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Y/ C (Video Output) | 1 channel BNC (1.0Vp-p 75 ohms) |
| Compression Type | H.264, MJPEG |
| Electrical Specifications | Power Consumption: < 7W |
| Physical Specifications | Dimensions mm: 151 x 119 Weight g: 1,250 |
| Environmental Specifications | Protection: IP66 Operating Temperature oC: -20 ~ +60 C (248 ~ 140 F) |

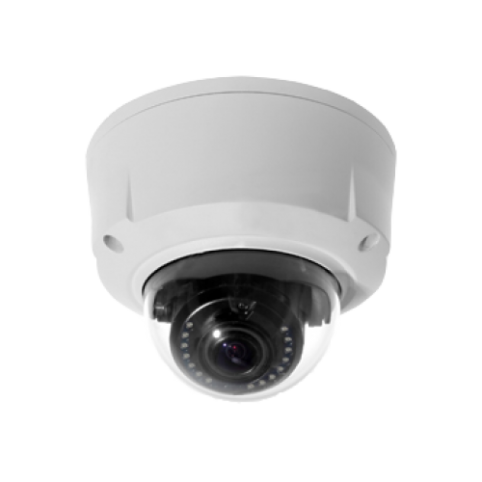

| Model Info | 2 megapixel IR network dome camera with built-in 1/1 alarm in/out. It has multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. |
